Examples of our work
References & Components
Precision parts that leave our facility in Liberec every day — for automotive, mechanical engineering and special applications. Every piece documents our precision.
Manufactured components
Our work.
CNC Milling
Steel Three-Hole Flange
Procurement of laser blank, vibratory finishing, milling of centre bore, surface grinding of sealing face
MaterialS235JRC (Steel)
Tolerance±0.05 mm
Series1,500 pcs. / month
IndustryAgricultural Machinery
CNC Turning
Precision Shaft for Textile Machine
Turning of a shaft, multiple cross-holes with thread,
100% runout inspection
100% runout inspection
Material1.4305 (Stainless steel)
Tolerance±0.03 mm
Series10,000 pcs.
IndustryTextile Machines
Tube Bending
Fuel Line for Chainsaw Engine
Precision bent stainless steel tube, manufactured to customer's 3D model.
Material1.4301 (Stainless steel)
DiameterØ 4 × 1.0 mm
Series500 pcs. / month
IndustryMotor-Powered Devices
CNC Turning

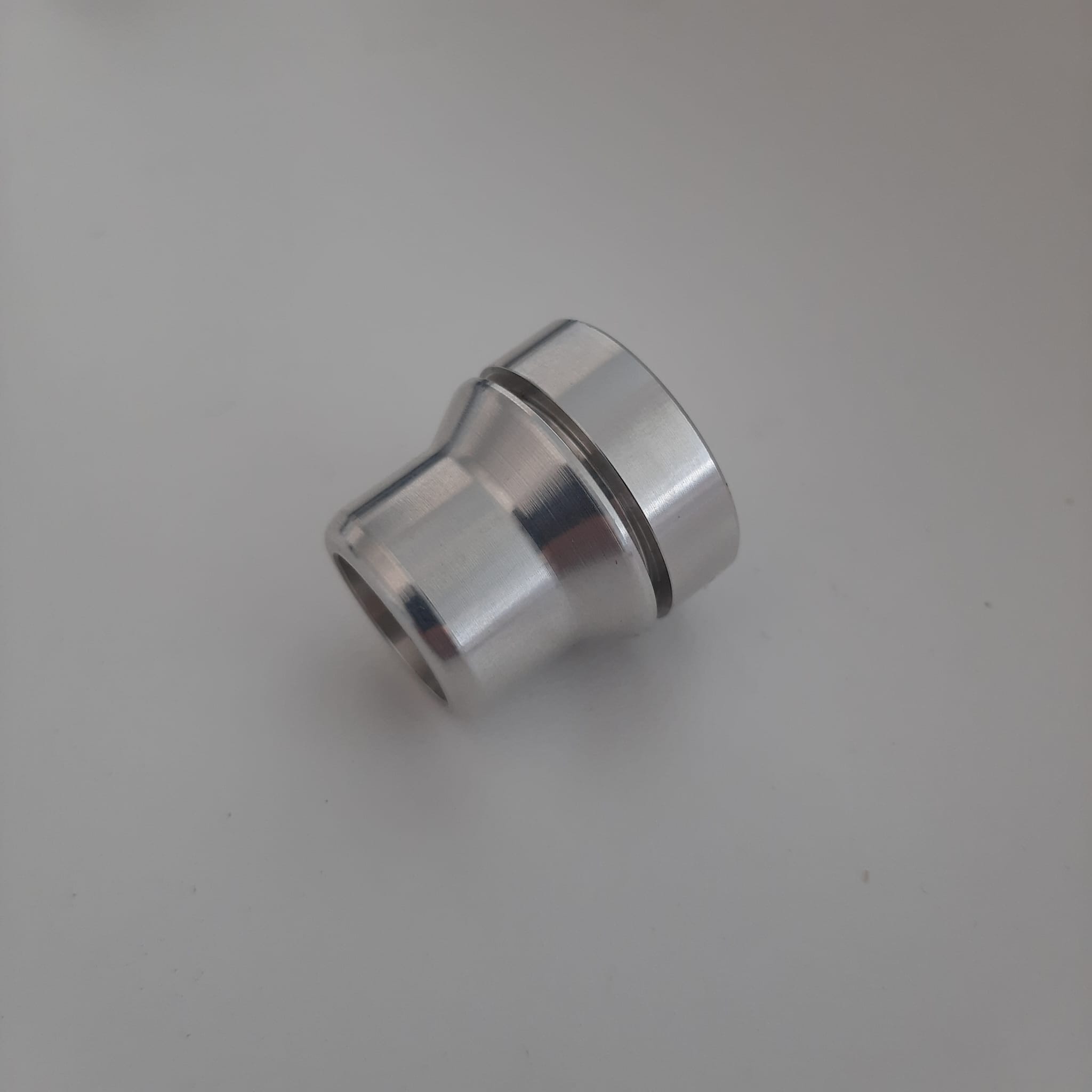

Connector for Water Cooling Tube
Turned to drawing, delivered grease-free to customer for brazing
MaterialEN-AW6082 (Aluminium)
Tolerance±0.05 mm
Series85,000 pcs.
IndustryAutomotive
Welding
Cleaning Element for Textile Machine
Manufactured to customer specification, insertion and welding of wire,
grinding of weld seam
grinding of weld seam
MaterialS235JRC (Steel)
Tolerance±0.05 mm
Series1,000 pcs.
IndustryTextile Machines
CNC Milling
O-Ring Flange
Procurement of laser blank, vibratory finishing,
machining of O-ring sealing face
machining of O-ring sealing face
MaterialS235JRC (Steel)
Tolerance±0.03 mm
Series4,000 pcs. / month
IndustryAutomotive
CNC Milling
Brass Connector
Machining post-processing of a brass casting
MaterialCuZn37 (Brass)
Tolerance±0.15 mm
Series1,000 pcs.
IndustryMechanical Engineering
Tube Bending
Fuel Line for Heating
Precision bent stainless steel tube, manufactured to customer's 3D model
Material1.4301 (Stainless steel)
DiameterØ 4 × 1.0 mm
Series1,000 pcs. / month
IndustryMechanical Engineering
CNC Milling

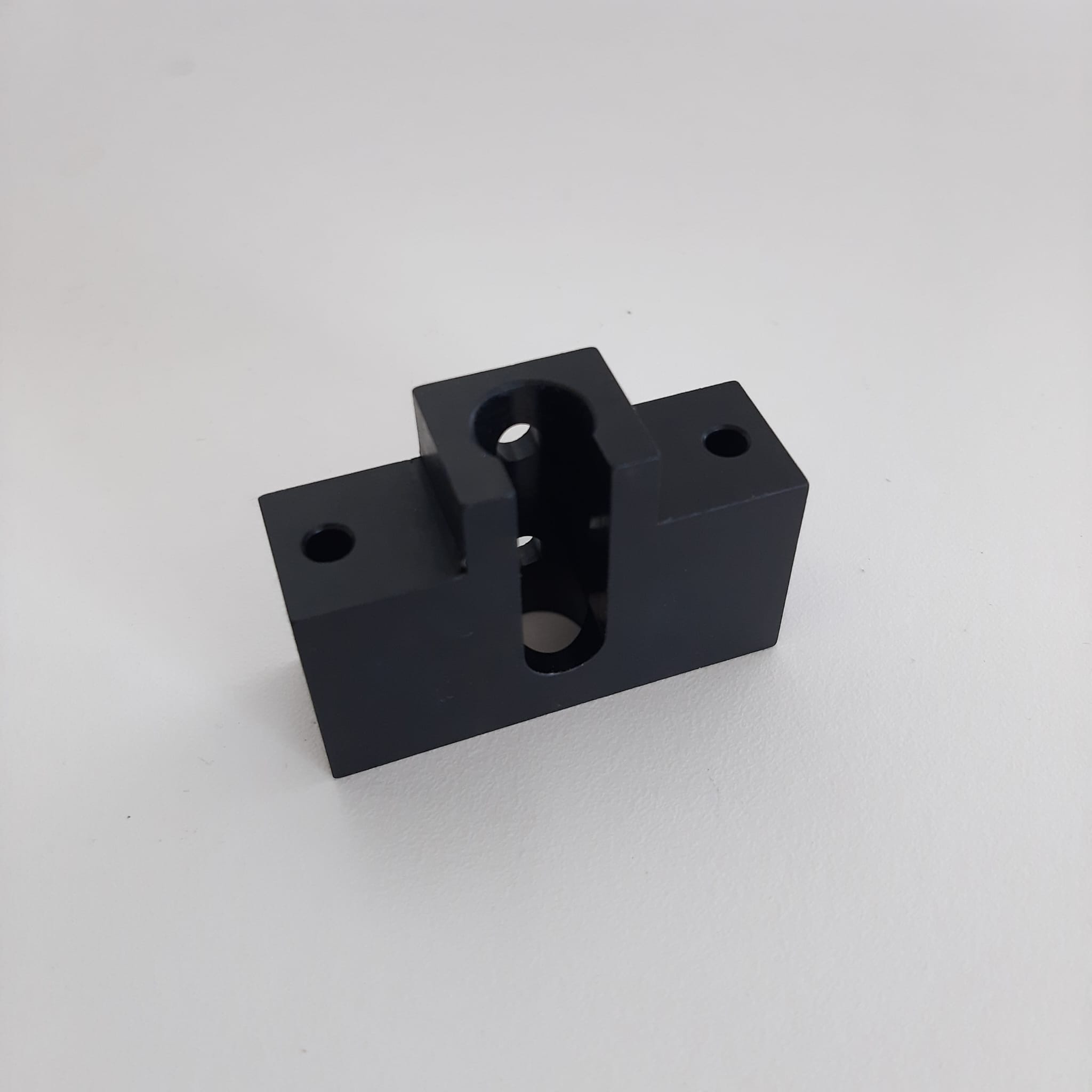

Plastic Mounting Block
Machined from solid,
5-axis machining due to tight tolerances between dimensions
5-axis machining due to tight tolerances between dimensions
MaterialPOM-C (Plastic)
Tolerance±0.05 mm
Series1,000 pcs.
IndustryMechanical Engineering
CNC Milling
Four-Hole Flange
Procurement of laser blank,
vibratory finishing, machining of angled centre bore
vibratory finishing, machining of angled centre bore
Material1.4404 (Stainless steel)
Tolerance±0.03 mm
Series2,000 pcs. / month
IndustryAutomotive
Welding
Assembly for Agricultural Machine
Manufactured to customer specification, KTL coating
Procurement and assembly of C-parts
Procurement and assembly of C-parts
MaterialS235JRC (Steel)
Tolerance±0.2 mm
Series5,000 pcs.
IndustryAgricultural Machinery
CNC Milling

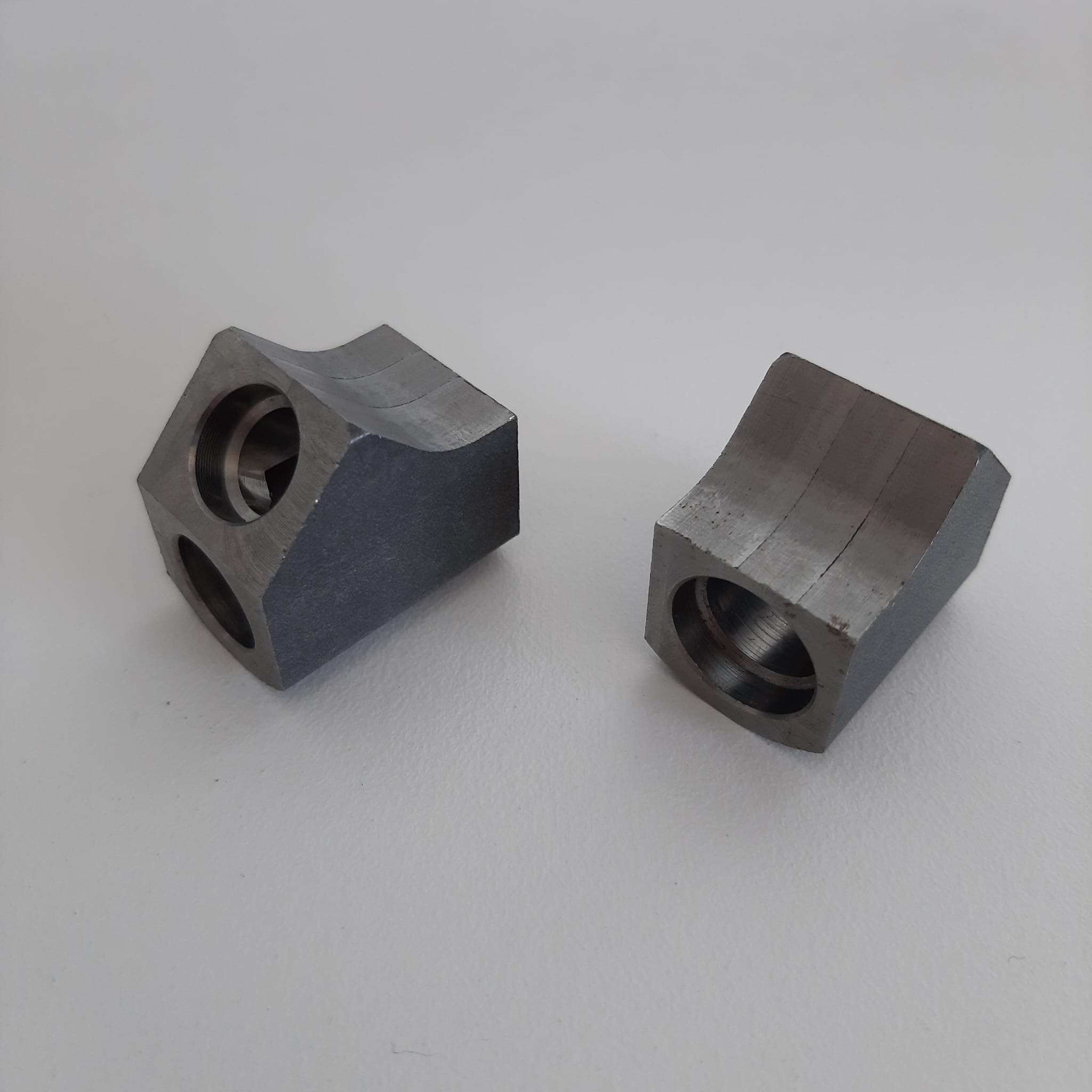

Y-Distributor for Pipelines
Manufactured from profile steel, 5-axis machining,
subsequently thermally deburred
subsequently thermally deburred
Material1.0715 (Free-cutting steel)
Tolerance±0.03 mm
Series7,500 pcs. / month
IndustryAutomotive
Tube Bending

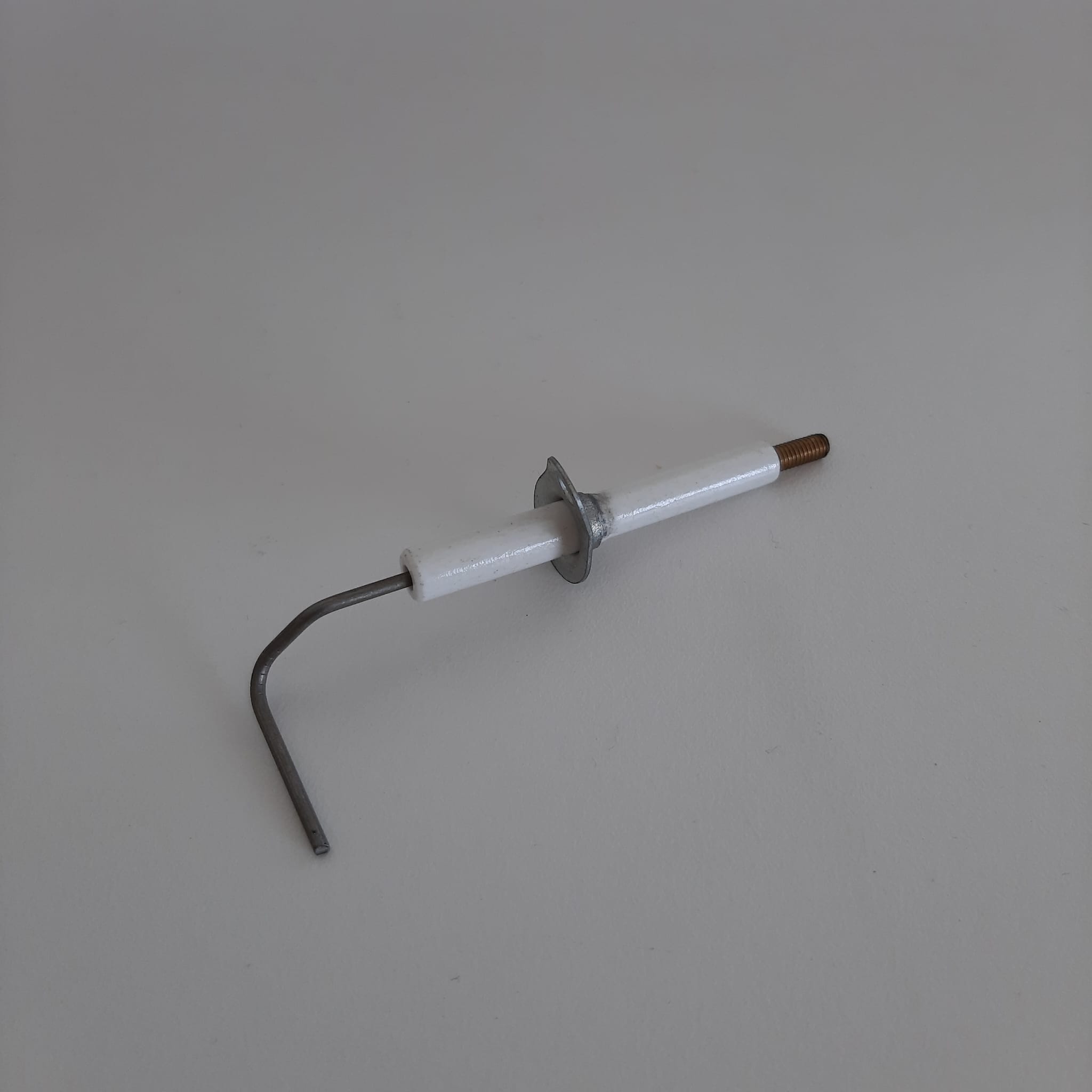

Ignition Electrode
Procurement of ignition electrode, bending of electrode to customer specification
Material1.4301 (Stainless steel)
DiameterØ 2 mm
Series400 pcs. / month
IndustryMotor-Powered Devices
Tube Bending

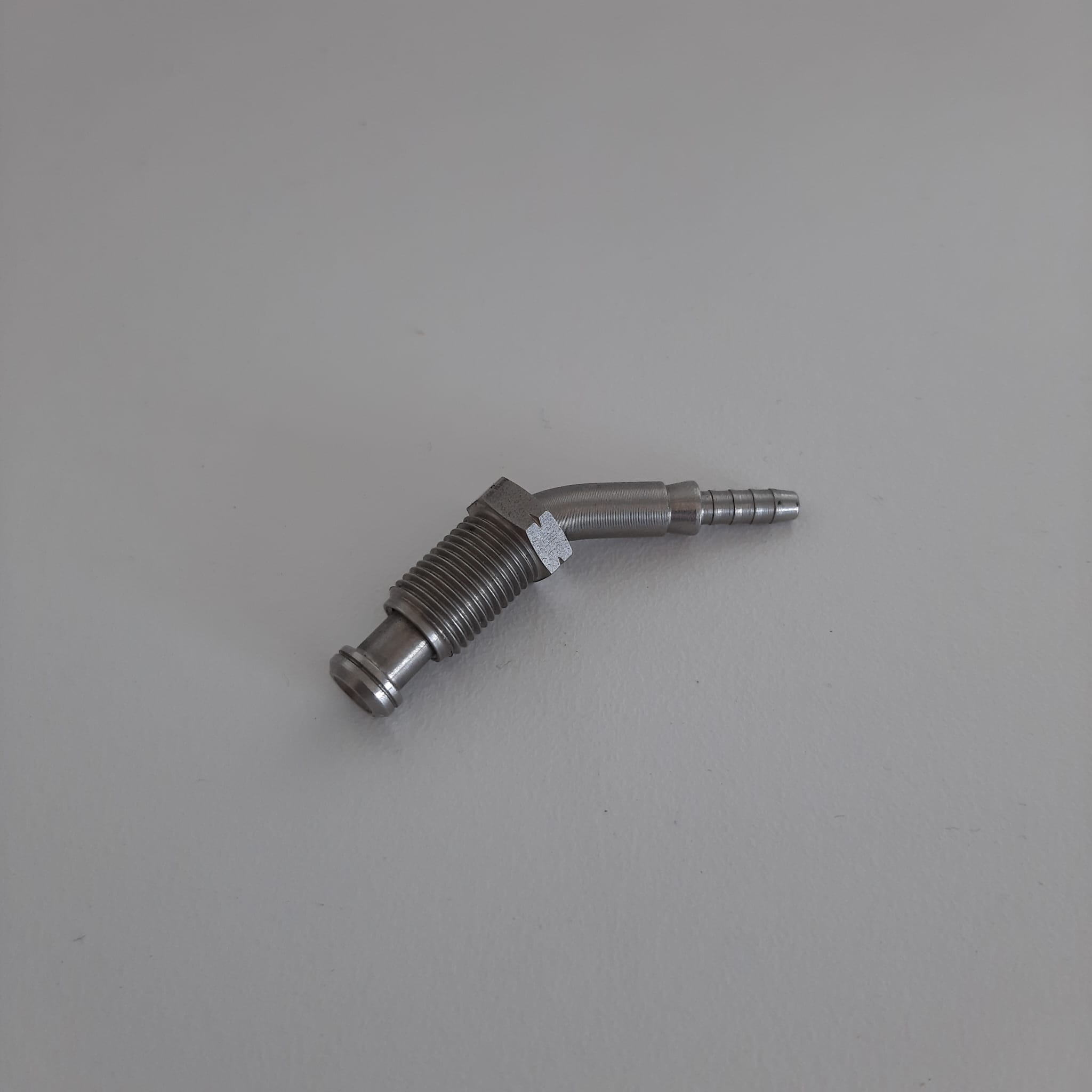

Oil Tube
Manufacturing of turned parts, followed by assembly and combined bending
Material1.4301 (Stainless steel)
DiameterØ 8 mm
Series150 pcs. / month
IndustryMechanical Engineering
CNC Milling

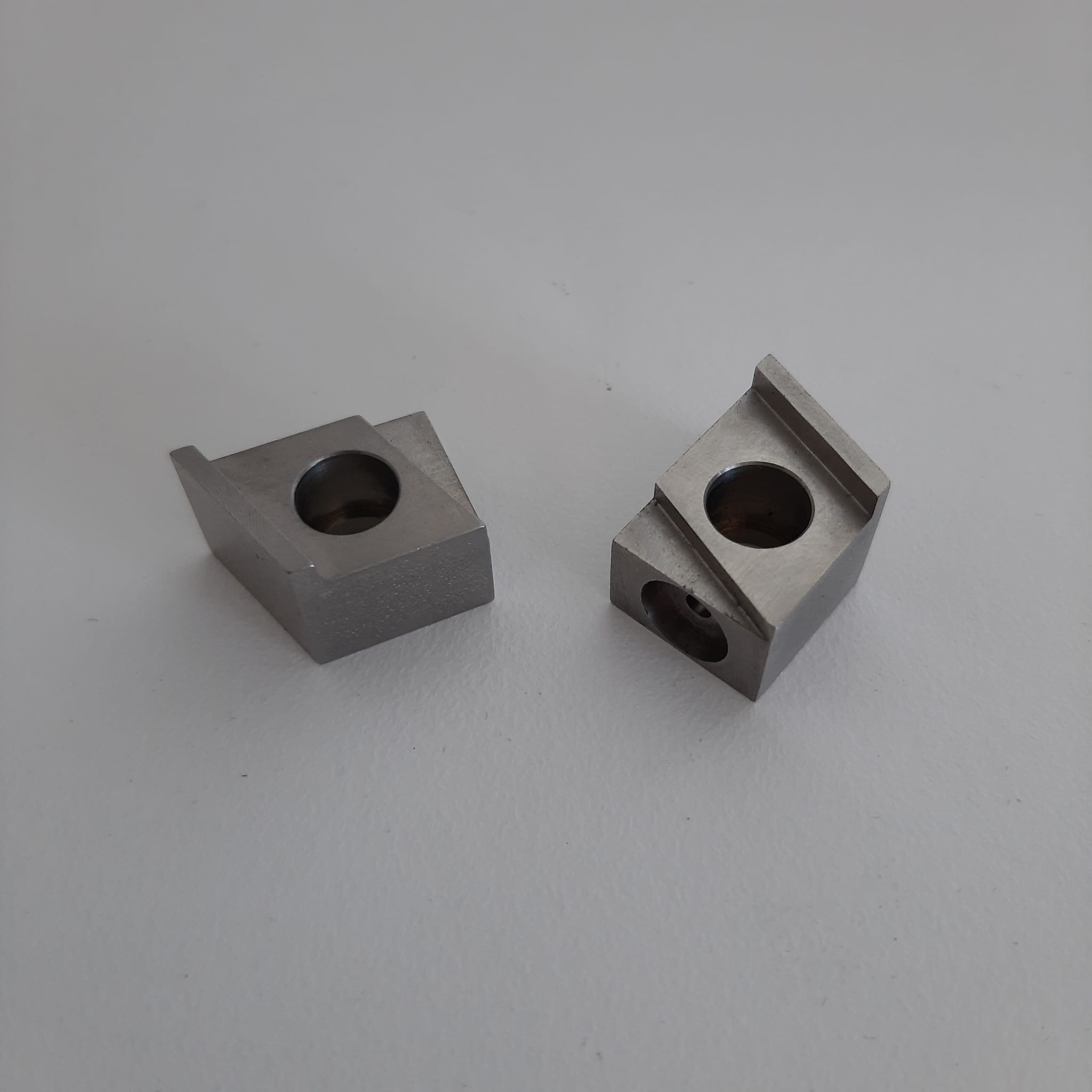

Suspension Strut Connector
5-axis machining, subsequent laser marking for left and right connection side
Material1.4305 (Stainless steel)
Tolerance±0.03 mm
Series1,500 pcs. / month
IndustryAgricultural Machinery
CNC Turning

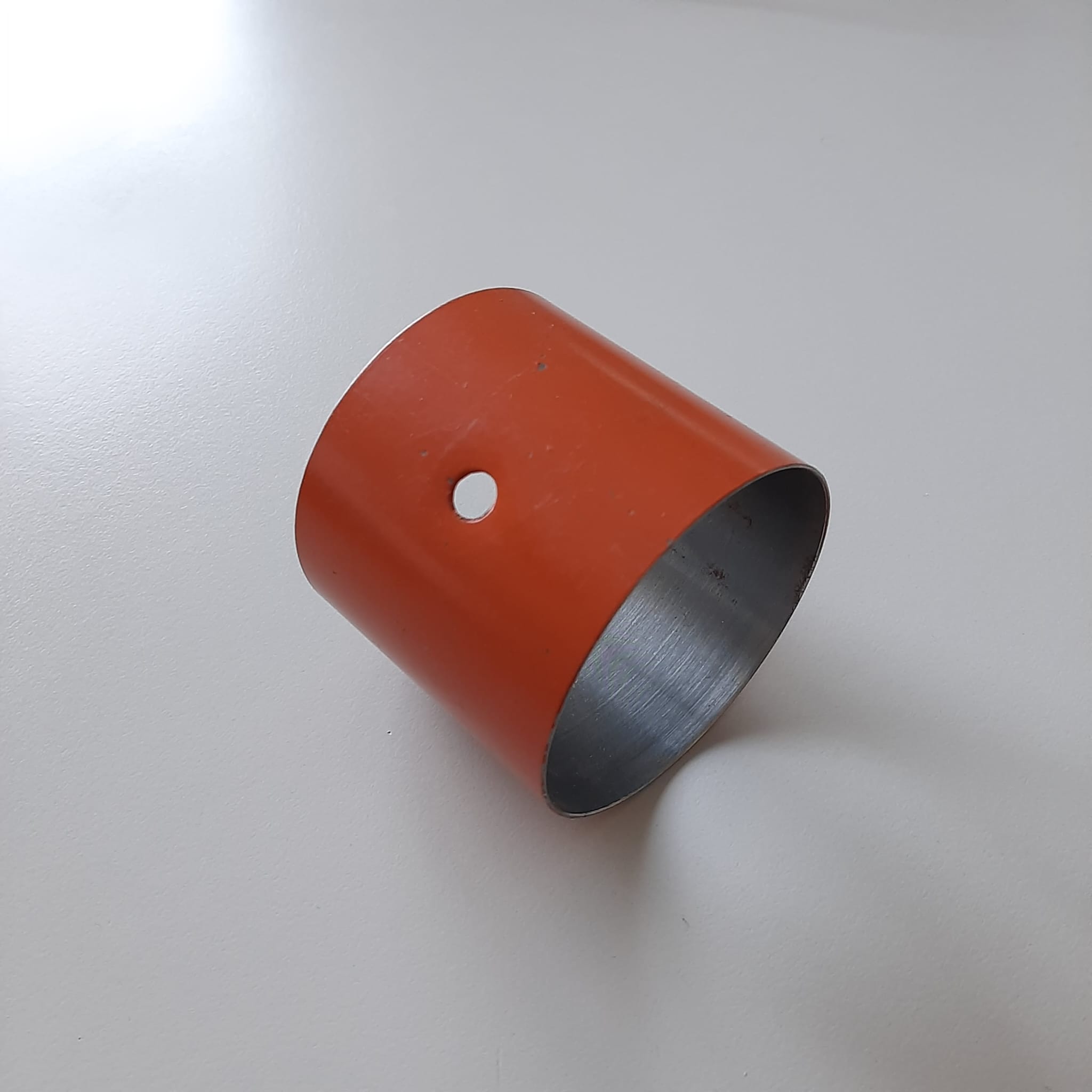

Tube Sleeve for Electric Machine
Turned to drawing, cross-bore machining,
powder coating
powder coating
MaterialE235 (Steel)
Tolerance±0.10 mm
Series8,000 pcs.
IndustryElectric Machines
CNC Milling
Mounting Part for Textile Machine
Manufactured to drawing, vibratory finished and electroplated (zinc)
Material1.0715 (Free-cutting steel)
Tolerance±0.05 mm
Series1,500 pcs. / month
IndustryTextile Machines
CNC Milling
Sliding Piece for Sun Protection
Manufactured to drawing,
subsequently packaged in poly bag with C-parts and labelled
subsequently packaged in poly bag with C-parts and labelled
MaterialPOM-C (Plastic)
Tolerance±0.2 mm
Series500 pcs. / month
IndustryMechanical Engineering
Your project
Do you have a similar component?
We are happy to realise your project — from one-off production to series delivery. We respond to your enquiry within 24 hours.
